Plain Plug Gauge Manufacturer Ahmedabad
Raj Engineers India is a trusted Plain Plug Gauge Manufacturer Ahmedabad and offering high-precision gauges used for accurate inspection of hole sizes in various industrial components. Plain plug gauges are essential tools in quality control processes where maintaining tight tolerances and dimensional accuracy is critical.
These gauges are widely used alongside tools like plain ring gauge for external diameter checking and snap gauge for fast production inspection to ensure complete dimensional verification in manufacturing environments.
Experience
Years of Experience
Team Members
Happy Clients

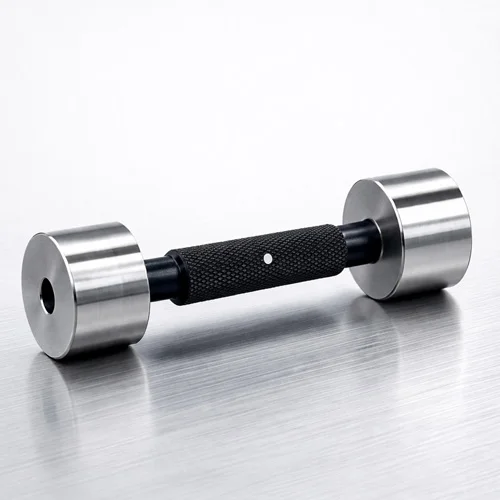

What is a Plain Plug Gauge?

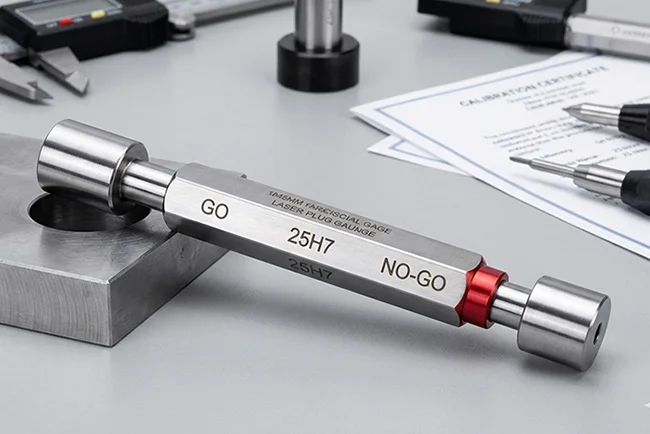

A plain plug gauge is a precision inspection tool used to check the internal diameter of a hole. It consists of two ends: GO and NO-GO. The GO end must enter the hole, while the NO-GO end should not. This simple yet effective method ensures that the components manufactured are within the specified limits.
The gauge typically consists of two ends:
- GO side – checks the maximum material condition
- NO-GO side – checks the minimum tolerance limit
It makes sure that the part meets the design specifications and stays the same during production.
Plain plug gauges are also known as
Plain Plug Gauge Manufacturer in Ahmedabad & Gujarat
As a leading Plain Plug Gauge Manufacturer Ahmedabad, Raj Engineers India supplies precision gauges across Gujarat and India. Our gauges are widely used in:
Industries We Serve:
- Automotive industries
- CNC machining units
- Textile machinery manufacturing
- Heavy engineering industries
Being located in Ahmedabad allows us to provide fast delivery and customized solutions to local and national clients.
Types of Plain Plug Gauges
Go / No-Go Plug Gauge
Used for tolerance verification in production.
Taper Plug Gauge
Used for checking tapered holes.
Thread Plug Gauge
Used for threaded hole inspection.
Special Purpose Plug Gauge
Custom-designed gauges for specific applications.
Technical Specifications of Plain Plug Gauge
| Parameter | Details |
|---|---|
| Material | High-grade tool steel (Hardened & tempered) |
| Hardness | 58–62 HRC |
| Accuracy | As per ISO / DIN standards |
| Surface Finish | Precision ground and lapped |
| Size Range | Standard and custom sizes available |
| Tolerance | As per customer requirement |
| Calibration | Available with certification |
Features of Plain Plug Gauges
High dimensional accuracy
Smooth surface finish
Excellent wear resistance
Long service life
Easy handling and quick inspection
Consistent measurement performance
Benefits of Using Plain Plug Gauges
Accurate Hole Inspection
Ensures precise measurement of internal diameters.
Maintains Quality Standards
Helps in achieving consistent product quality.
Reduces Rejection Rates
Minimizes errors during production.
Fast Inspection Process
Ideal for high-volume manufacturing.
Cost Efficiency
Reduces rework and material wastage.
Applications of Plain Plug Gauges

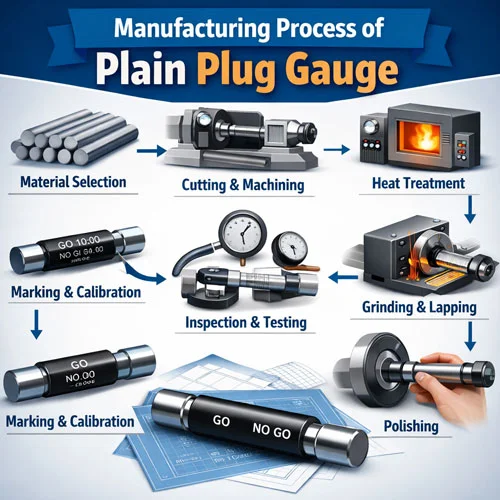

Manufacturing Process
Selection of high-quality raw material
Precision selection for maximum durability.
Precision CNC machining
Advanced shaping for technical accuracy.
Heat treatment for hardness
Achieving 58–62 HRC for superior wear resistance.
Grinding and lapping for accuracy
Ensuring precise surface finish and dimensional control.
Final inspection and quality testing
Final verification of all quality parameters.
Quality Assurance
Each plain plug gauge undergoes strict quality checks:
Why Choose Raj Engineers India?
Custom Plain Plug Gauge Solutions
We provide customized plug gauges based on:
Cities We Serve Across India
We deliver precision gauges on time and with consistent quality to industries in major cities across India for use in manufacturing and engineering.
Related Gauges
Frequently Asked Questions – Plain Plug Gauge
It is used to check the internal diameter of holes and ensure they meet specified tolerances.
The GO gauge checks maximum material condition, while the NO-GO gauge verifies minimum tolerance limits.
Yes, they can be manufactured as per drawings, sizes, and tolerance requirements.
Automotive, CNC machining, textile machinery, and general engineering industries.
High-grade hardened tool steel is commonly used.
Through precision grinding, lapping, and strict quality inspection processes.
Yes, supply is available across Ahmedabad, Gujarat, and all major industrial regions in India.
Conclusion
Plain plug gauges are essential tools for maintaining dimensional accuracy in hole inspection. High-quality gauges ensure consistent production, reduced errors and improved overall product quality in industrial applications.
